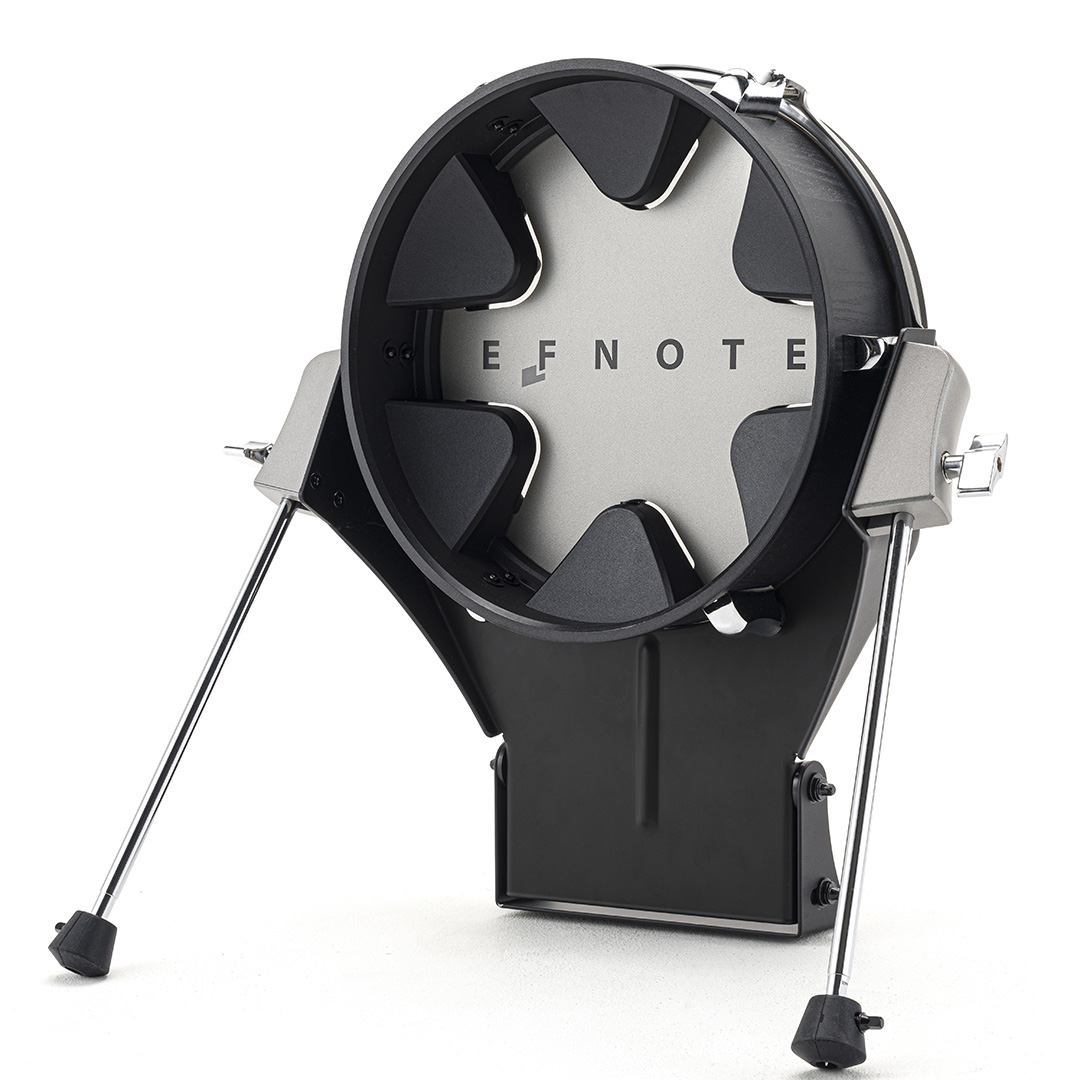

Efnote 3X

• Size: 12 x 4″
• Zone: Head
• Sensor: Multi
• Head: Low-rebound double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Angle-adjustable kick pedal attachment

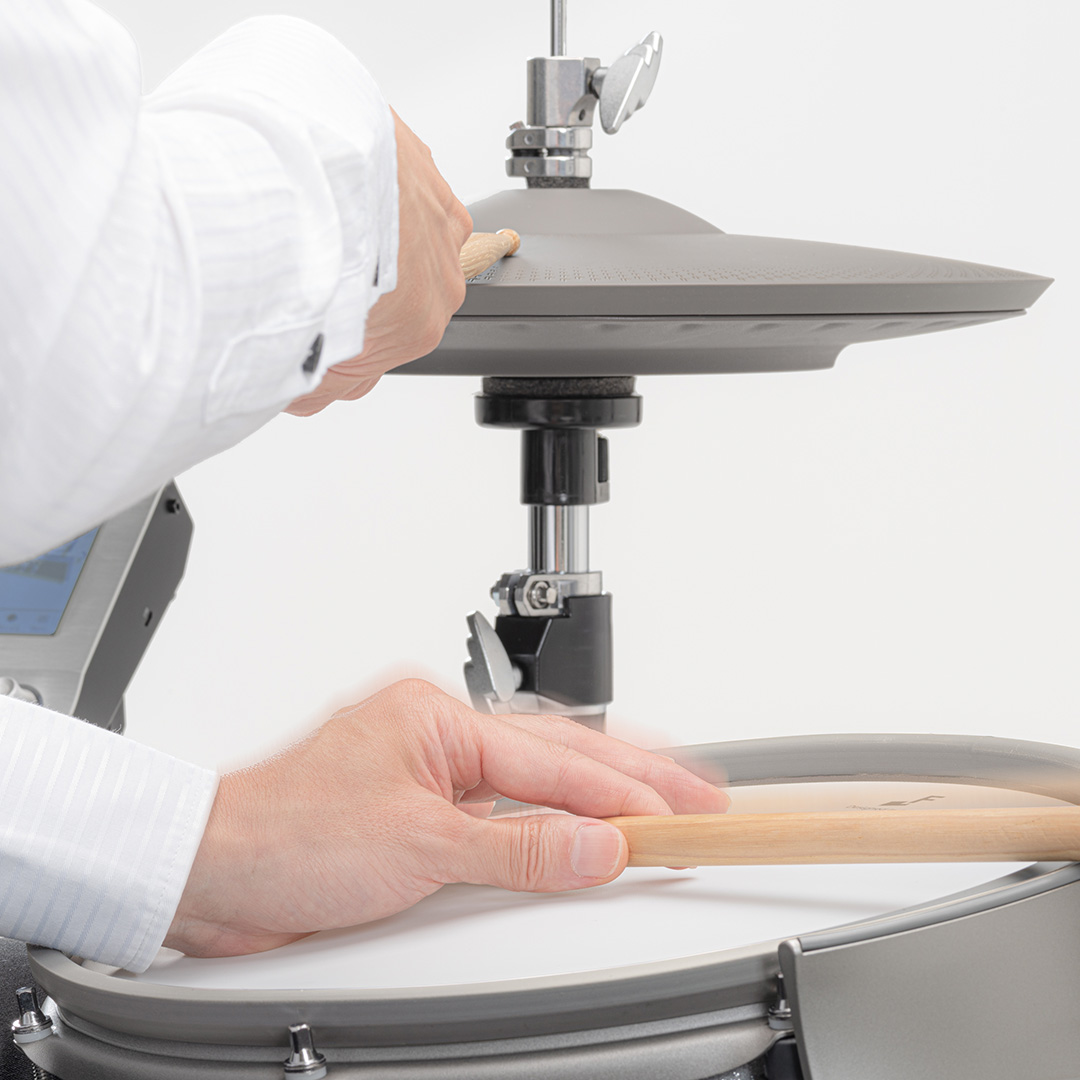

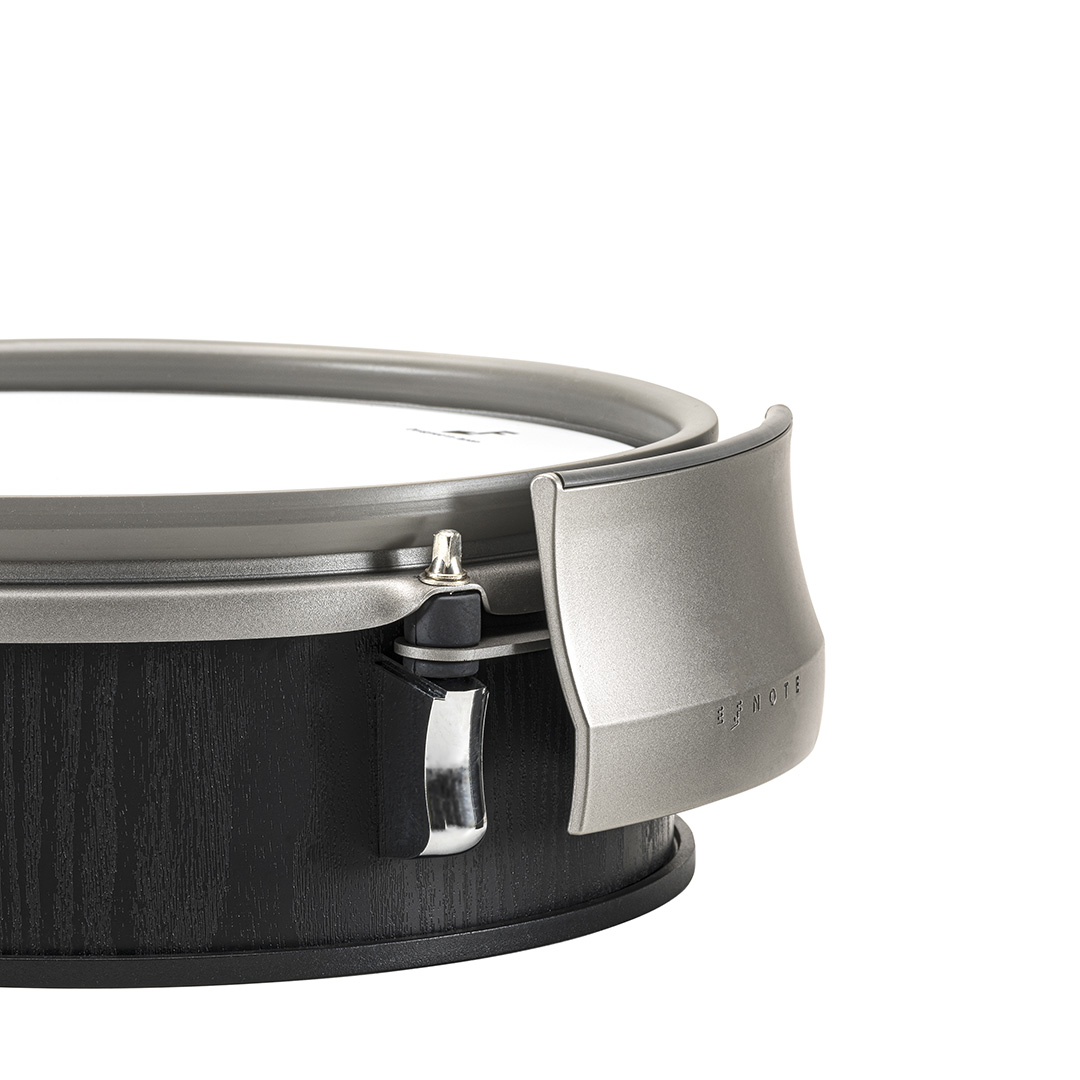

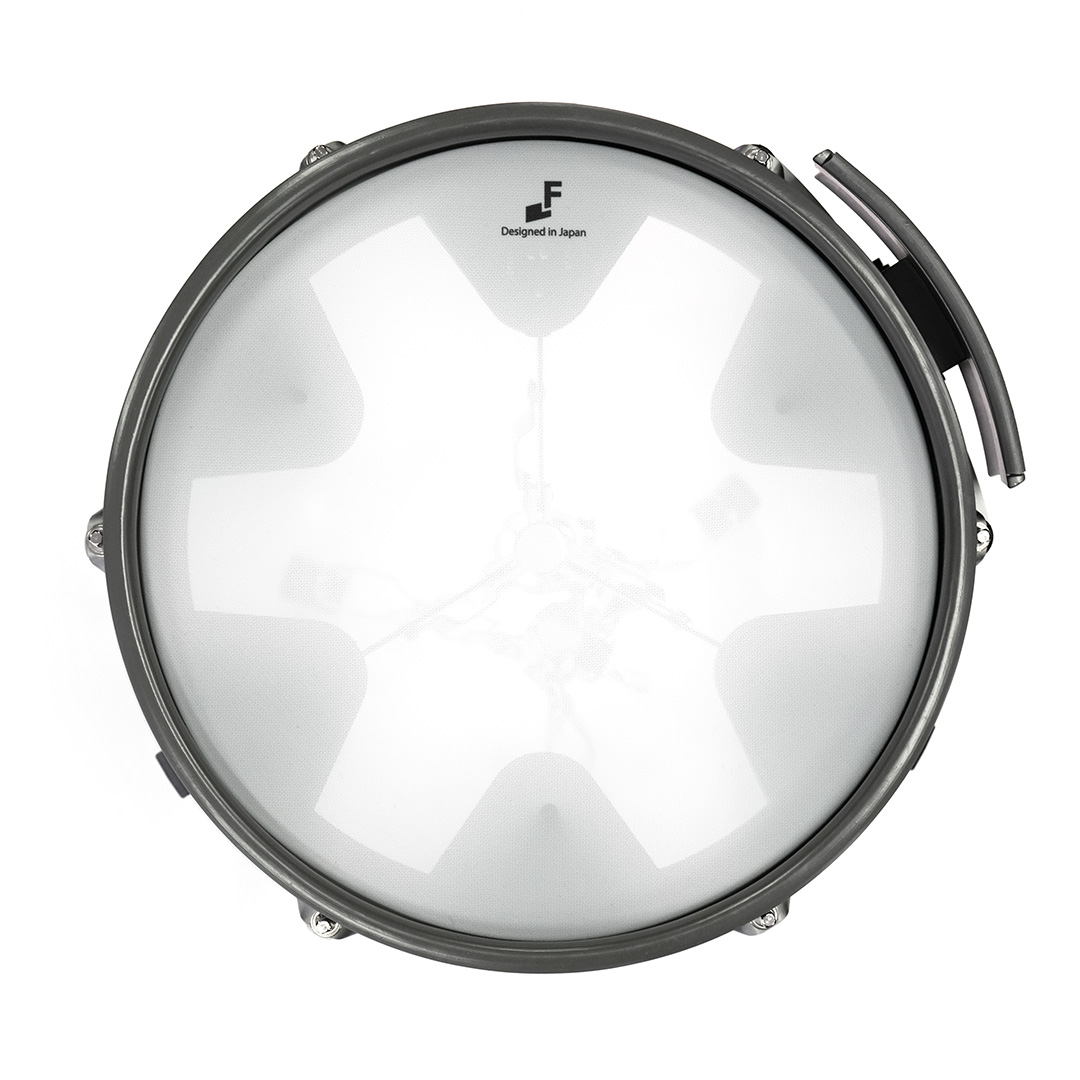

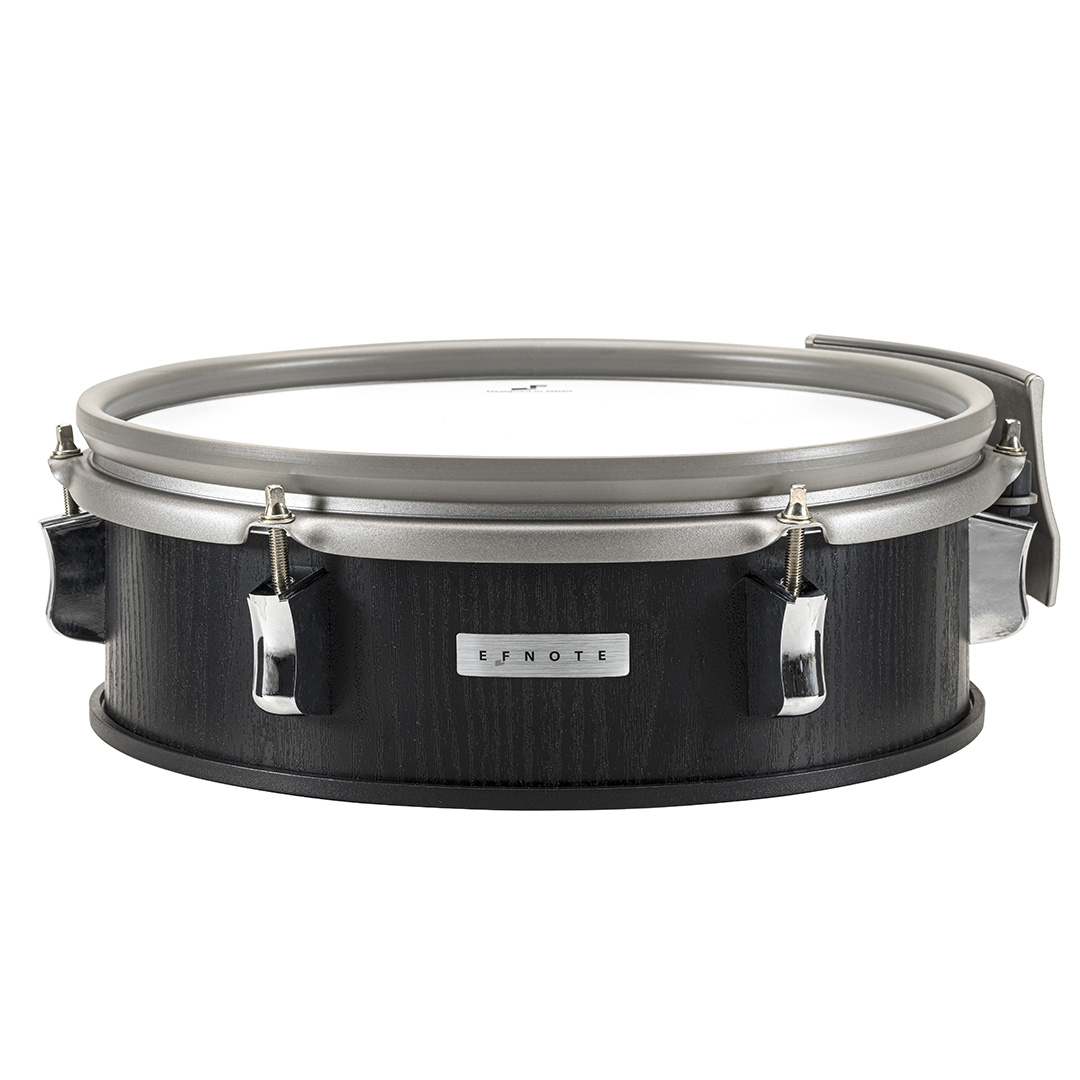

Snare EFD-S12P

• Size: 12 x 4″
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Side-Rim

• Size: 10 x 3.5″
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount

• Size: 12 x 4″
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount

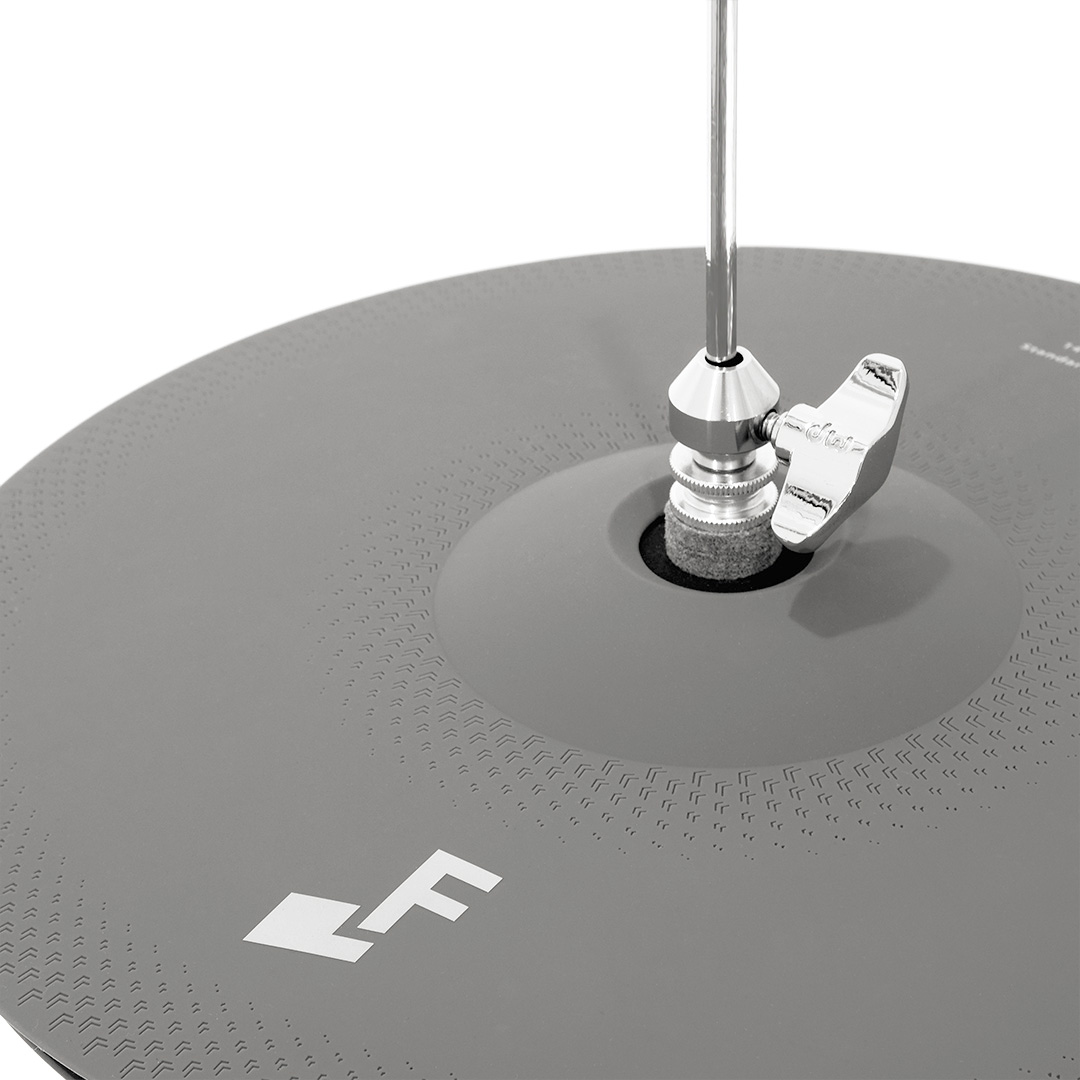

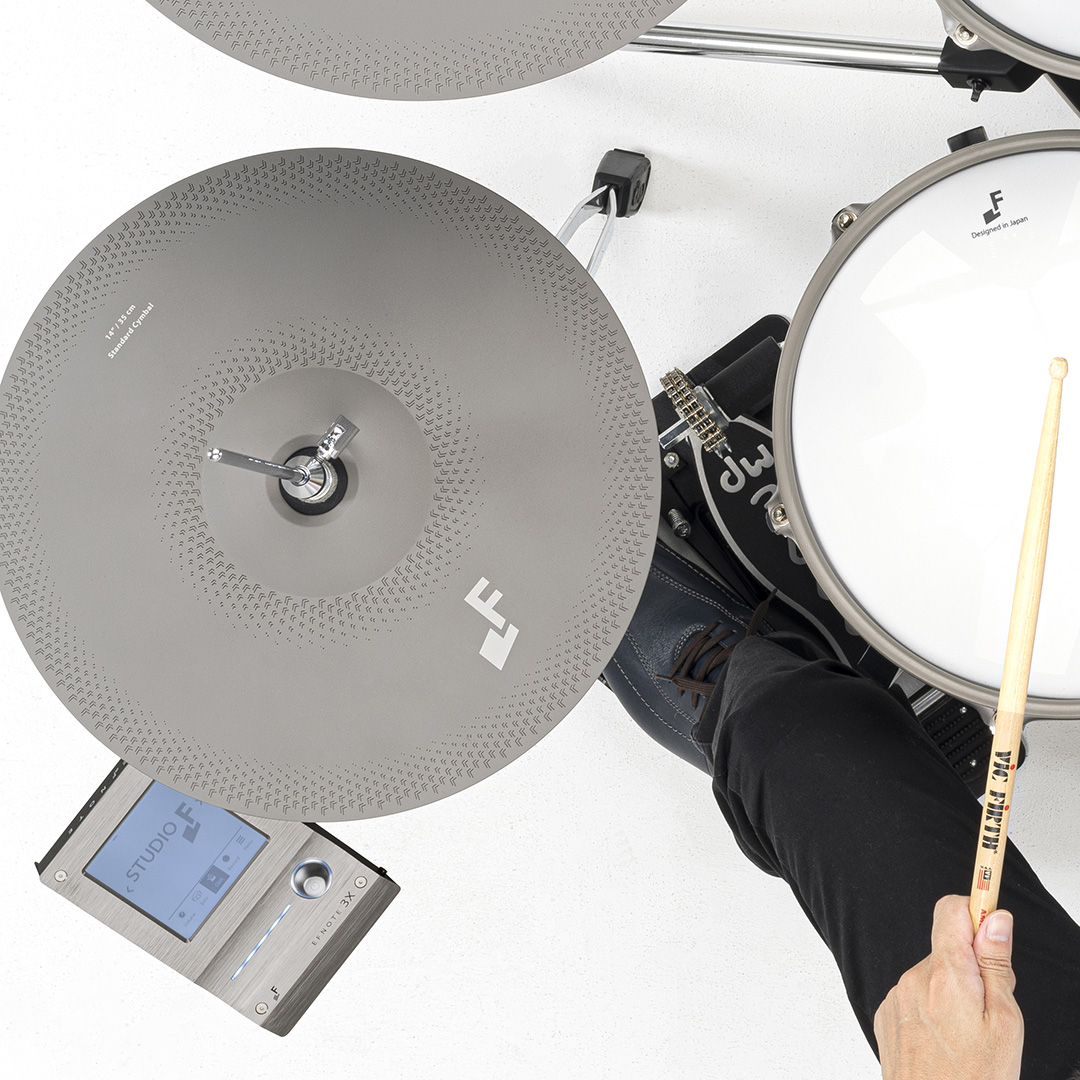

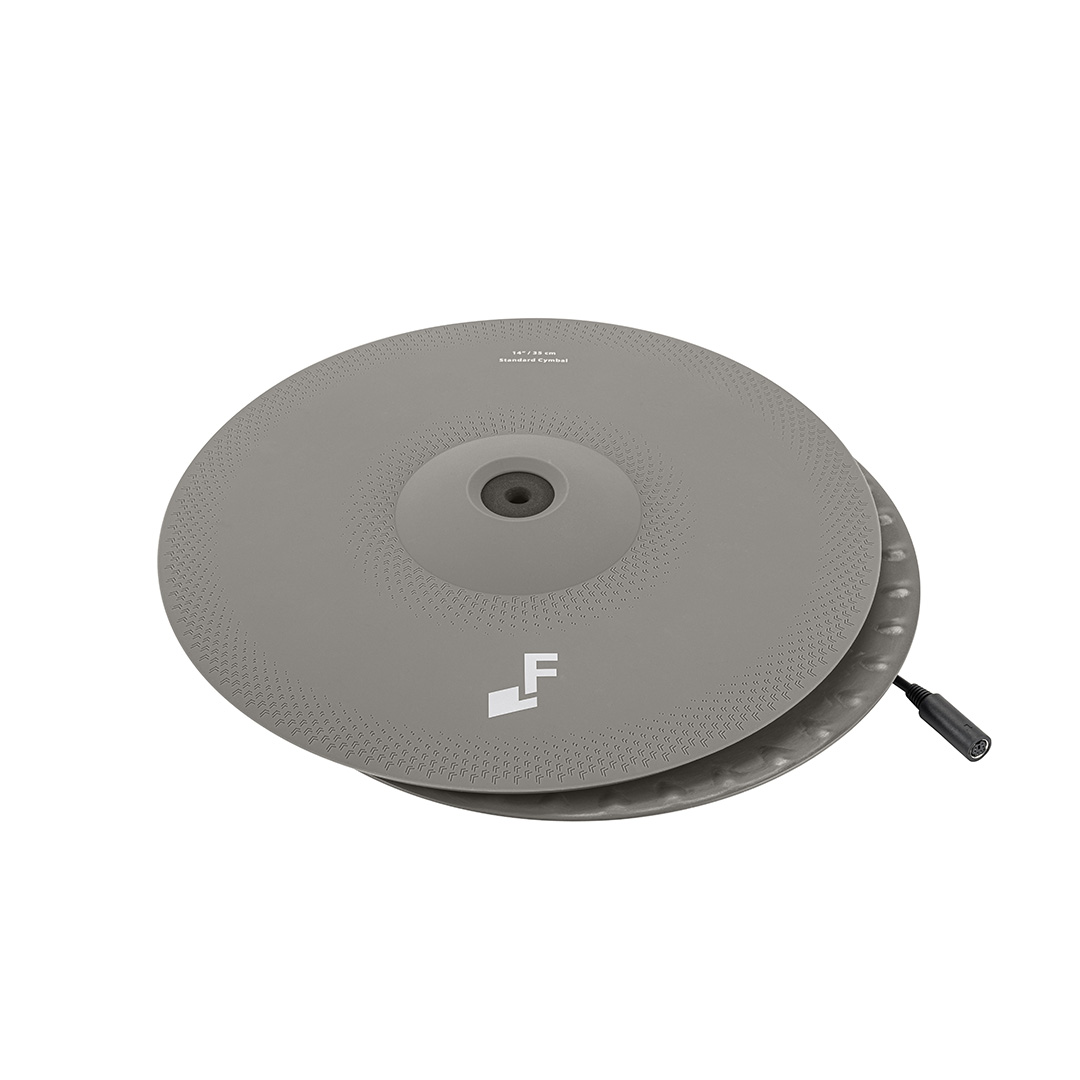

• Size: 14″ (Top/Bottom)
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion hi-hat, Weight simulation, Fine engraved surface
• General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.
• EFNOTE 3X sound module does not support hi-hat cup zone.

• Size: 16″
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.

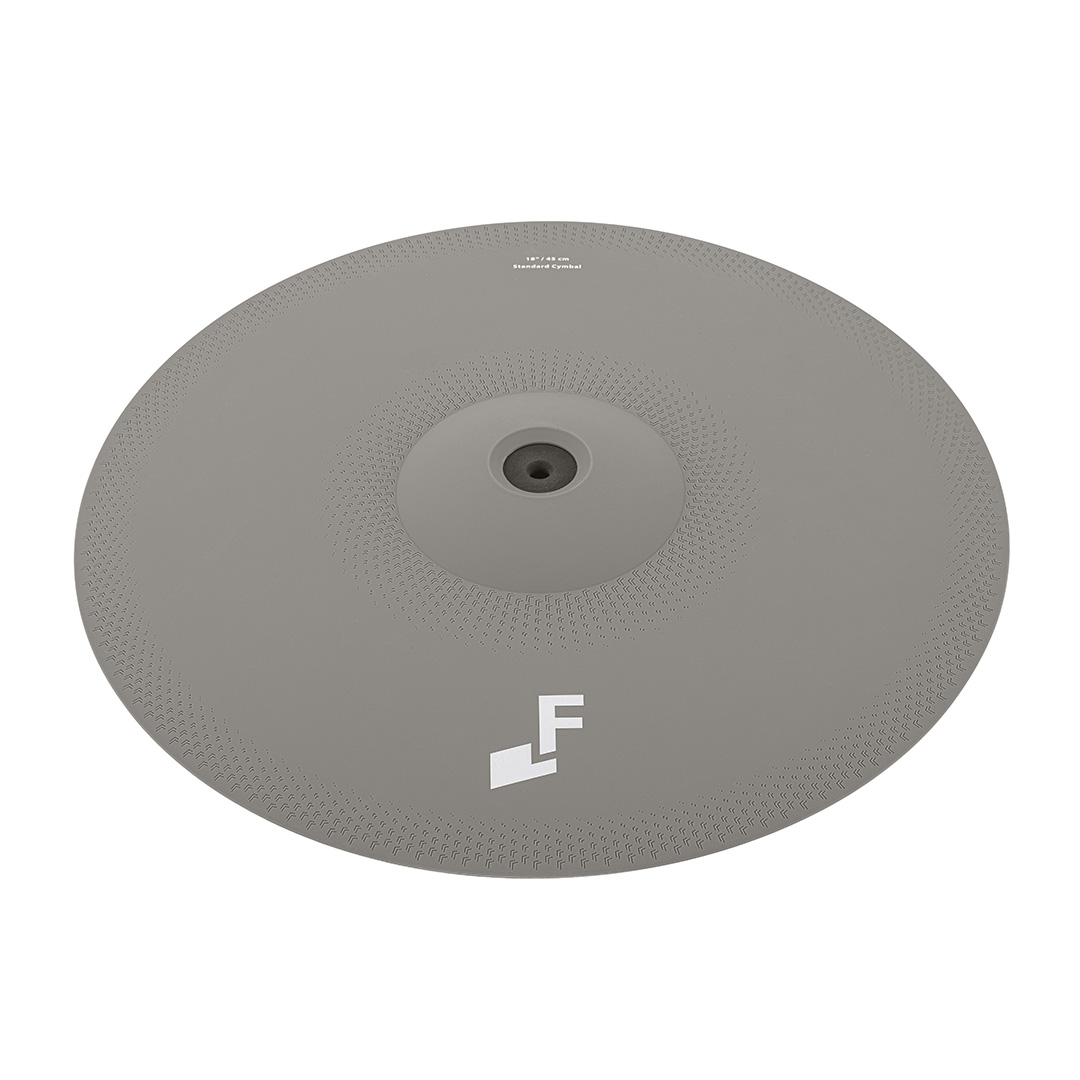

• Size: 18″
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• Sound Module: EFD-3X

• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick
• Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
• In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
• Audio / MIDI Interface
• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)

• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI (BLE) In/Out
• MIDI Out: 5-pin DIN
• Drum Kits / Instruments
• Preset Drum Kits: 16 (Editable)
• User Drum Kits: 34
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
• User Inst Library: 50 (Can be stored customized instruments)
• Edit Parameters
• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer
• Dimensions
• 172 (W) x 106 (D) x 47 (H) mm
• 700g
• Excluding protrusions
• Power
• DC 12V, 500mA (Nominal) / 800mA (Max)
• Tripods / Stands

• 3x Lambda Tripod
• Snare Drum Stand
• For 12″ to 14″ diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″)
• Height adjustment range: 500 — 650 mm

• 4x Tom Holder Arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″)
• Tube diameter: φ22.2 mm (7/8″)
• Height adjustment range: 550 — 900 mm

• 3x Boom Cymbal Arm
• Gearless tilter

• Tube diameter: φ22.2 mm (7/8″)
• Boom length: 300 mm
• Height adjustment range: 650 — 1250 mm

• 1x Sound Module Arm
• 1x Smartphone Tray
• Drum Kit Placement

• Approx. 170 (W) x 110 (D) cm
• Approx. 5.6 (W) x 3.6 (D) feet
• Without drum throne
• Package

• Brake-Out Cable: EFD-MULTI-AX
• Brake-Out Cable: EFD-MULTI-B
• 4x Trigger Cable 3.0 m: EFD-TRS-LL3
• Cable Ties
• Quickstart Guide
• Kick pedal, hi-hat stand and drum throne are sold separately.
